Optima 117 Plus

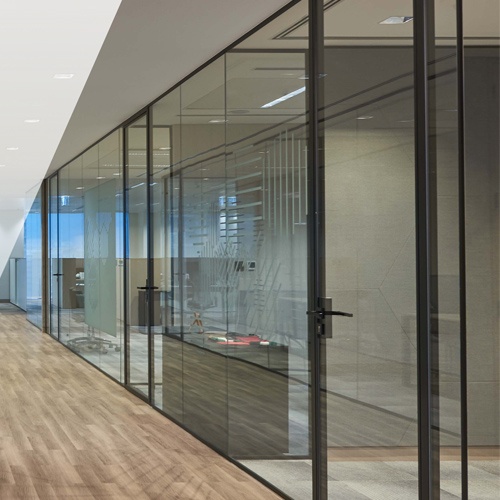

Optima 117 Plus is a timelessly elegant single glazed partition system which can be used to make beautiful private rooms out of open spaces. Minimal head and base channels and discreet glass to glass dry joints create the illusion of vast areas of unsupported glass.





Head Condition

The incorporation of extruded aluminium deflection heads makes the system an ideal solution for the modern office building, where high levels of deflection are common. Both inner and outer deflection heads are available, to suit your design intent, and can accommodate up to +/-25mm or +/-40mm deflection. If there is no deflection required, a simple 25mm extruded aluminium head channel is all that is required.


Base Condition

The aluminium base channel can either be 25mm or 50mm deep, depending upon how minimal you want the perimeter framing to be. Where deflection is required, the base channel is 36mm wide to align with the deflection head channel, but if there is no deflection the base channel is just 25mm wide.



Panel Dimensions

Optima 117 Plus single glazing can accommodate glass panels up to 1500mm wide, subject to height, configuration, and site logistics. Please contact our Technical Team to discuss the unique requirements of your scheme.


Interpanel Joints

The use of dry-glaze gaskets in Optima 117 Plus single glazing makes it quick and easy to install, without compromising on durability, aesthetics or acoustic performance. A number of discreet glass to glass dry joints are available, including clear PETG, flush aluminium, taped
